2.1. Bajos Beyma Studio 8WOOFER/P (Woofer)

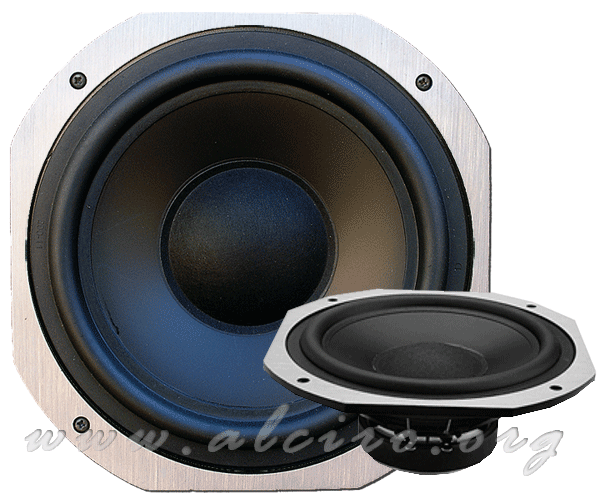

Altavoz de bajos Beyma Studio 8WOOFER/P (Woofer)

Especificaciones:

Especificaciones técnicas   Technical specifications
Diámetro nominal Nominal diameter 200 mm. 8 in.
Impedancia nominal Rated impedance 8 ohms.
Potencia admisible* Power capacity* 50 w RMS
Potencia programa Program Power 100 Watts.
Sensibilidad Sensitivity 92 dB, 2.83v @ 1m @ 2π
Rango de frecuencias Frequency range 30-3500 Hz
Volumen de caja recom. Recom. enclosure vol. 20/50 l 0.7/1.77 ft.3
Diámetro de bobina Voice coil diameter 25.8 mm. 1 in.
Peso conjunto magnético Magnetic assembly weight 1 kg. 2.2 lb.
Factor BL factor 7.1 N/A
Masa móvil Moving mass 0.02 kg.
Altura bobinado Voice coil length 15 mm.
Anchura entrehierro Air gap height 6 mm.
Desplazamiento máximo X damage (peak to peak) 20 mm.

Parámetros:

Parámetros Thiele-Small**   Thiele-Small Parameters**
Fs Resonant Frequency, fs 35 Hz
Re D.C. Voice Coil Resistance, Re 5.37 ohms.
Qms Mechanical Quality Factor, Qms 2.33
Qes Electrical Quality Factor, Qes 0.47
Qts Total Quality Factor, Qts 0.38
Vas Equivalent Air Volume to Cms, Vas 75 l
Cms Mechanical Compliance, Cms 940.2 μm/N
Rms Mechanical Resistance, Rms 1.97 kg/s
ηo (%) Efficiency, ηo (%) 0.6
Sd Effective Surface Area, Sd(m2) 0.022 m2
Xmax Maximum Displacement, Xmax 4.5 mm.
Vd Displacement Volume, Vd 100 cm.3
Le @ 1 kHz Voice Coil Inductance, Le @ 1kHz 0.6 mH
