2.2. Medios Beyma Studio 5MP60/N (Mid-Range)

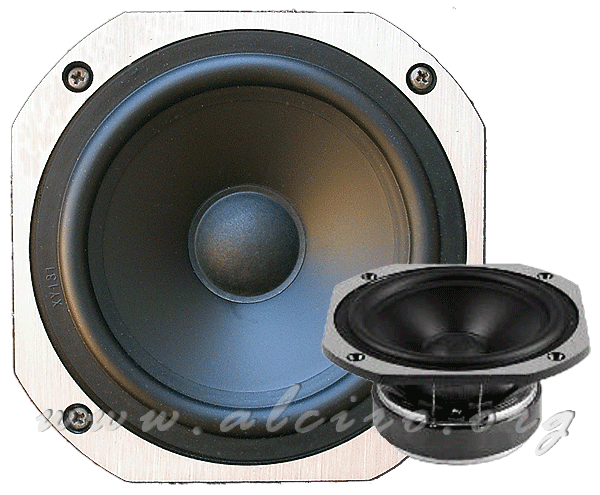

Altavoz de medios Beyma Studio 5MP60/N (Mid-Range)

Especificaciones:

Especificaciones técnicas   Technical specifications
Diámetro nominal Nominal diameter 125 mm. 5 in.
Impedancia nominal Rated impedance 8 ohms.
Potencia admisible* Power capacity* 50 w RMS
Potencia programa Program Power 100 Watts.
Sensibilidad Sensitivity 91 dB, 2.83v @ 1m @ 2π
Rango de frecuencias Frequency range 50 - 12000 Hz
Volumen de caja recom. Recom. enclosure vol. 10/20 l 0.35/0.7 ft.3
Diámetro de bobina Voice coil diameter 25.8 mm. 1 in.
Peso conjunto magnético Magnetic assembly weight 1 kg. 2.2 lb.
Factor BL factor 6.4 N/A
Masa móvil Moving mass 0.008 kg.
Altura bobinado Voice coil length 14 mm.
Anchura entrehierro Air gap height 6 mm.
Desplazamiento máximo X damage (peak to peak) 20 mm.

Parámetros:

Parámetros Thiele-Small**   Thiele-Small Parameters**
Fs Resonant Frequency, fs 60 Hz
Re D.C. Voice Coil Resistance, Re 5.33 ohms
Qms Mechanical Quality Factor, Qms 1.604
Qes Electrical Quality Factor, Qes 0.35
Qts Total Quality Factor, Qts 0.29
Vas Equivalent Air Volume to Cms, Vas 9.8 l
Cms Mechanical Compliance, Cms 970 μm/N
Rms Mechanical Resistance, Rms 1.75 kg/s
ηo (%) Efficiency, ηo (%) 0.5
Sd Effective Surface Area, Sd(m2) 0.0085 m2
Xmax Maximum Displacement, Xmax 4 mm.
Vd Displacement Volume, Vd 34 cm.3
Le @ 1 kHz Voice Coil Inductance, Le @ 1kHz 0.4 mH
