 Introduction to home automation network free microHomeLan
 Economic issues in home automation installations

2.1.6. PCB PCB

The design of the PCB system board (motherboard PCB) has made one-sided following the policies of the project to minimize costs and to facilitate its implementation. It has been built on European estánsdar 100x160mm format, but every effort has reduced its size so the end result is a base plate 100mm x 112mm.

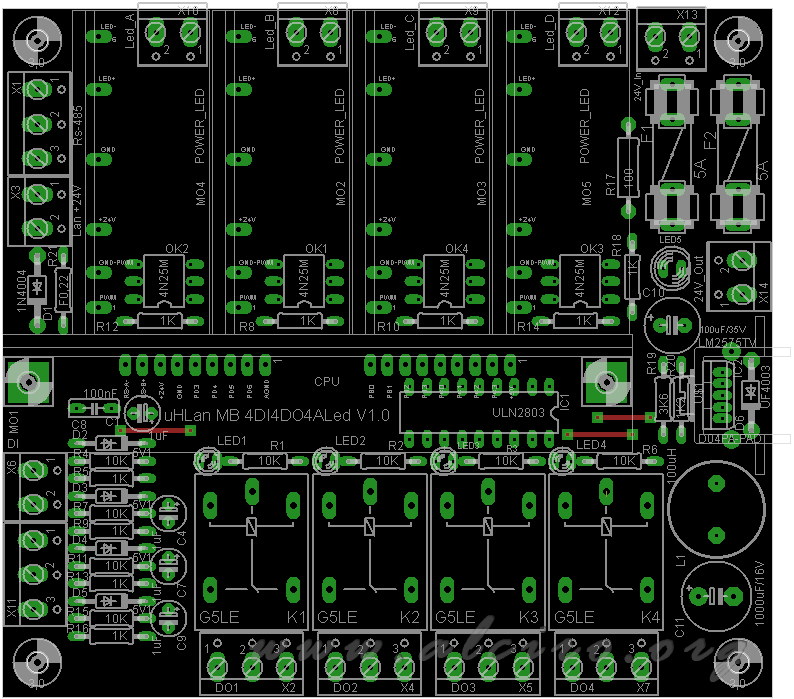

Uhlan MB 4DI4DO4ALed PCB V1.0
Buttom V1.0 CPU PCB TOP Uhlan
Buttom V1.0 CPU PCB BOTTOM Uhlan
