2.1.4.2. Supply voltage of the power components

The 24V power supply in the plant automation is carried out through the X13 connector (24V_In). After this is done the power supply to power controller leds and automatic low voltage 24V.

Protecting drivers power diodes LEDs are made ​​by the fuse F1. To determine the value of the fuse F1 has to add the consumption of all drivers for the LED diodes. For example, if we have 4 active drivers with LED rated 1A, the maximum current is 4 amps, so you have to put a fuse from 4 to 5 amps.

F1\ =\ I_led1+I_led2+I_led3+I_led4\ (A)

It has a power output connector on the X14 (24V_Out) for the supply voltage of automatic low voltage (motors, sensors, electro-valves etc.). To protect the supply line of a short circuit is provided the fuse F2. The F2 fuse value depends on the consumption of automation that is controlled by X14. For example if it controls a solenoid valve that consumes 0.5A 1A fuse is sufficient. If you control a shutter motor 24V 100W, 4A consumption is and has to put a 5A fuse.

I(A)\ =\ \frac{P(W)}{V(V)}=\ \frac{100}{24}\ =\ 4,16\ A\ \equiv \ 5A

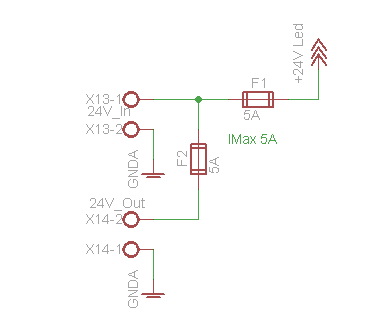

Food of the power components
